Gleistein

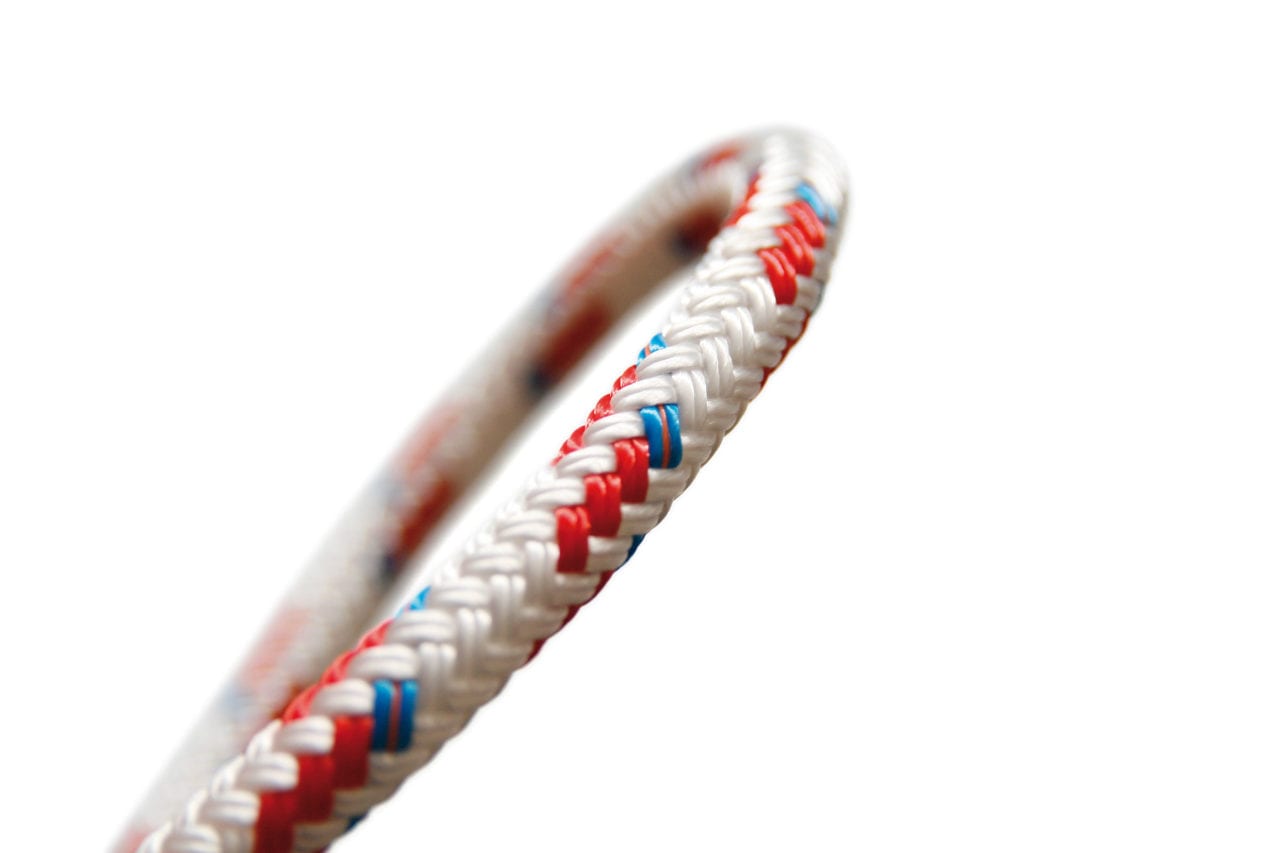

Cup

The classic: Tried and tested for decades, highest efficiency polyester rope due to its unique construction.

  • Core of parallel continuous filament polyester HT
  • Inner braided sheath (from 8mm diameter) binds the core yarns
  • 16/20/24 plait braided outer cover of polyester HT
  • No constructional stretch
  • Very long service life
  • Exceptional performance in cleats, very abrasion resistant
  • Initial stiffness will soften up in use
  • Deployment as a control line of halyard

Load elongation curve

Cup - Load elongation curve - Carl Stahl

Beschikbare kleuren

Cup kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3 0,70 170 189
4 1,10 350 389
5 1,80 600 667
6 2,70 780 867
8 4,50 1.300 1.444
10 7,30 2.200 2.444
12 9,50 3.200 3.556
14 13,50 4.600 5.111
16 18,50 6.500 7.222
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 1,4% of breaking load
