Gleistein

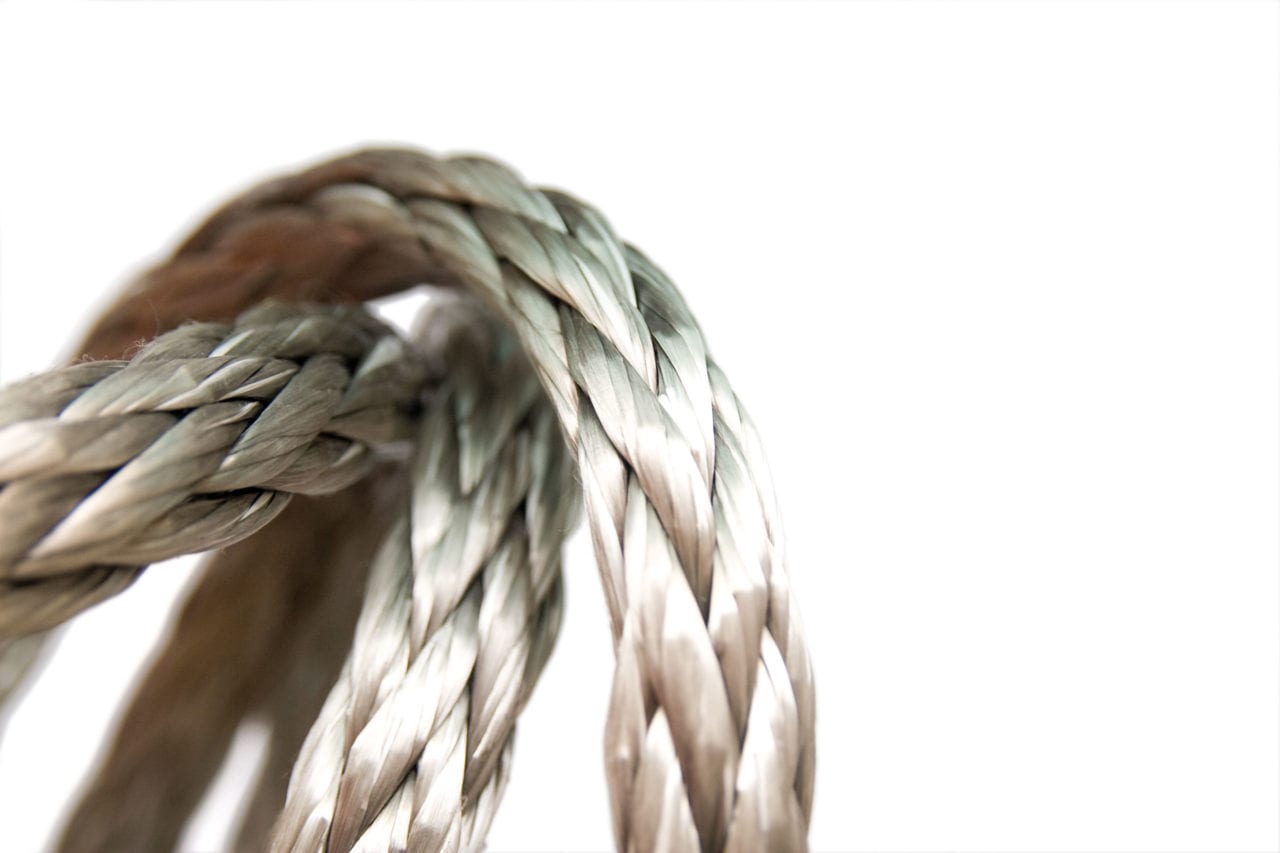

DynaOne HS

Material exploitation for extreme performance: Heat set to bring out the best in Dyneema®.

  • 12-strand braid of 100% Dyneema® SK78
  • Heat set for greater strength, minimised elongation and maximum cross-sectional utilisation
  • Geothane coating for improved protection against abrasion and the elements
  • Attributes similar to wire rope - at a fraction of the weight
  • Buoyant
  • Even without a protective cover a real rope with balanced universal properties and long service life - which besides its coating is chiefly attributable to its firm braid structure

Load elongation curve

DynaOne HS - Load elongation curve - Carl Stahl

Beschikbare kleuren

DynaOne HS kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3 0,60 1.180 1.311
4 1,00 1.890 2.100
5 1,60 3.000 3.333
6 2,10 3.800 4.222
8 4,10 7.540 8.378
10 5,50 10.060
11.178
12 9,60 17.600 19.556
14 10,90 20.120 22.356
16 14,60 25.550 28.389
18 22,30 37.810 42.011
20 27,00 45.920 51.022
22 29,50 50.000 55.556
24 36,30 60.670 67.411
26 41,30 66.590 73.989
28 44,30 74.000 82.222
30 50,20 81.500 90.556
32 57,20 92.000 102.222
36 68,10 110.000 122.222
40 99,80 150.000 166.667
44 117,90 172.970 192.189
48 137,90 202.250 224.722
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 0,3% of breaking load

Op rol, custom-made, serie werk of enkele stuks.
