Gleistein

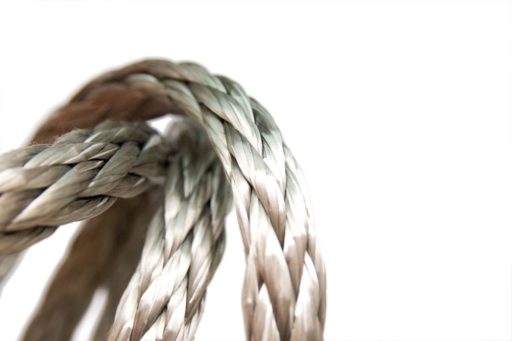

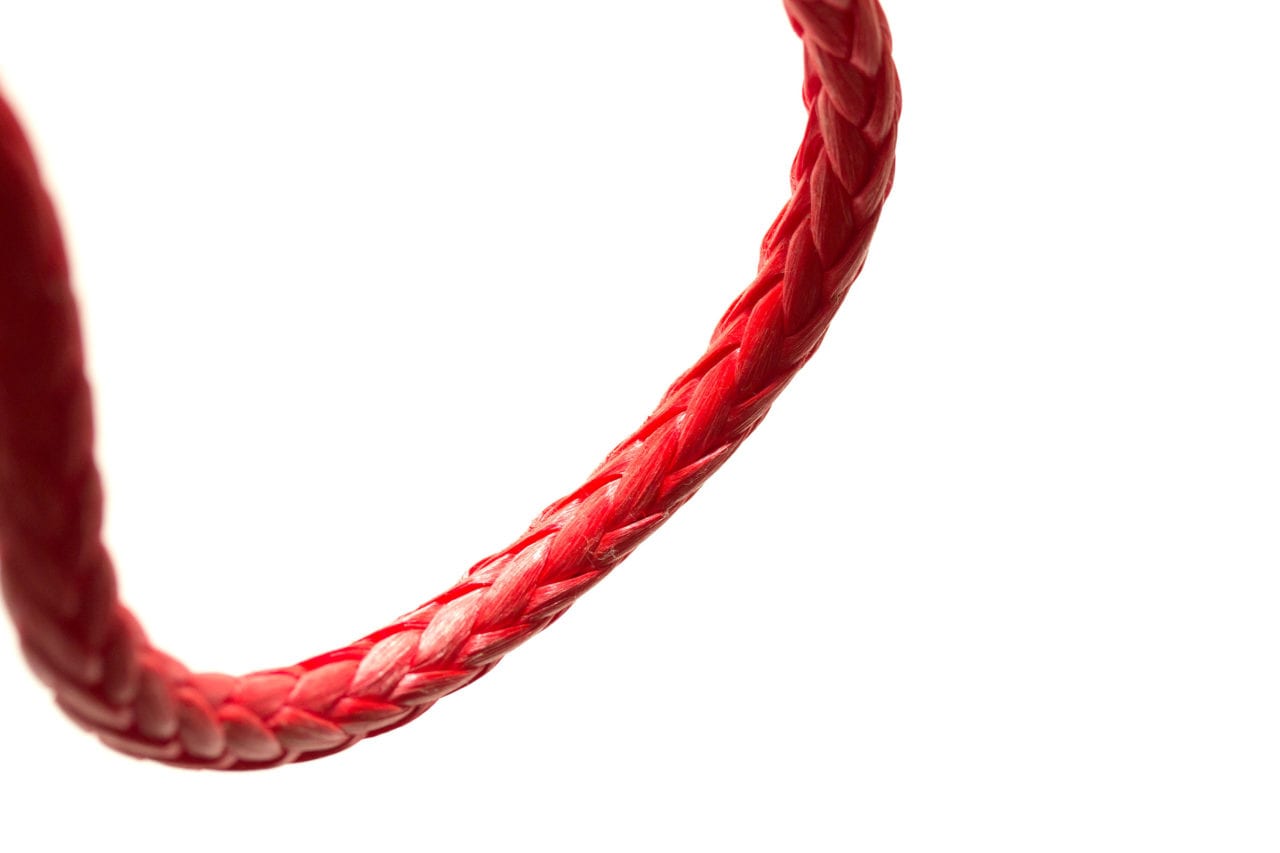

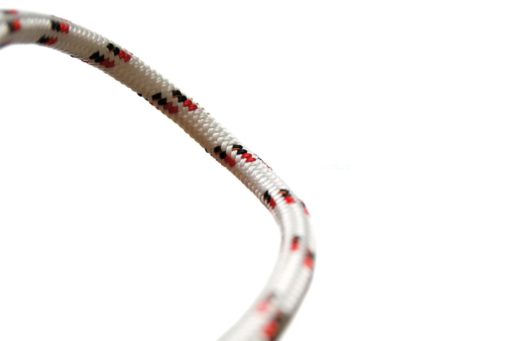

DynaOne

Pure Dyneema® for ultimate performance at lowest weight: As strong as wire rope at just a seventh the weight.

  • 12-strand braid of 100% Dyneema® SK78
  • Geothane coating for improved protection against abrasion and the elements
  • Attributes similar to wire rope - at a fraction of the weight
  • Buoyant
  • Even without a protective cover a real rope with balanced universal properties and long service life - which besides its coating is chiefly attributable to its firm braid structure

Load elongation curve

DynaOne - Load elongation curve - Carl Stahl

Beschikbare kleuren

DynaOne kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2 0,24 450 500
3 0,48 900 1.000
4 0,84 1.400 1.556
5 1,43 2.400 2.667
6 1,90 3.190 3.544
8 3,30 5.590 6.211
10 4,80 7.980
8.867
12 7,20 11.950 13.278
14 10,00 16.750 18.611
16 11,50 19.150 21.278
18 15,30 24.300 27.000
20 20,10 30.850 34.278
22 23,40 36.000 40.000
24 28,40 43.700 48.556
26 31,00 47.700 53.000
28 38,20 57.750 64.167
30 43,40 63.400 70.444
32 46,50 65.400 72.667
36 60,10 83.000 92.222
40 71,60 95.040 105.600
44 90,70 120.380 133.756
48 105,10 139.000 154.444
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 0,6% of breaking load
