Gleistein

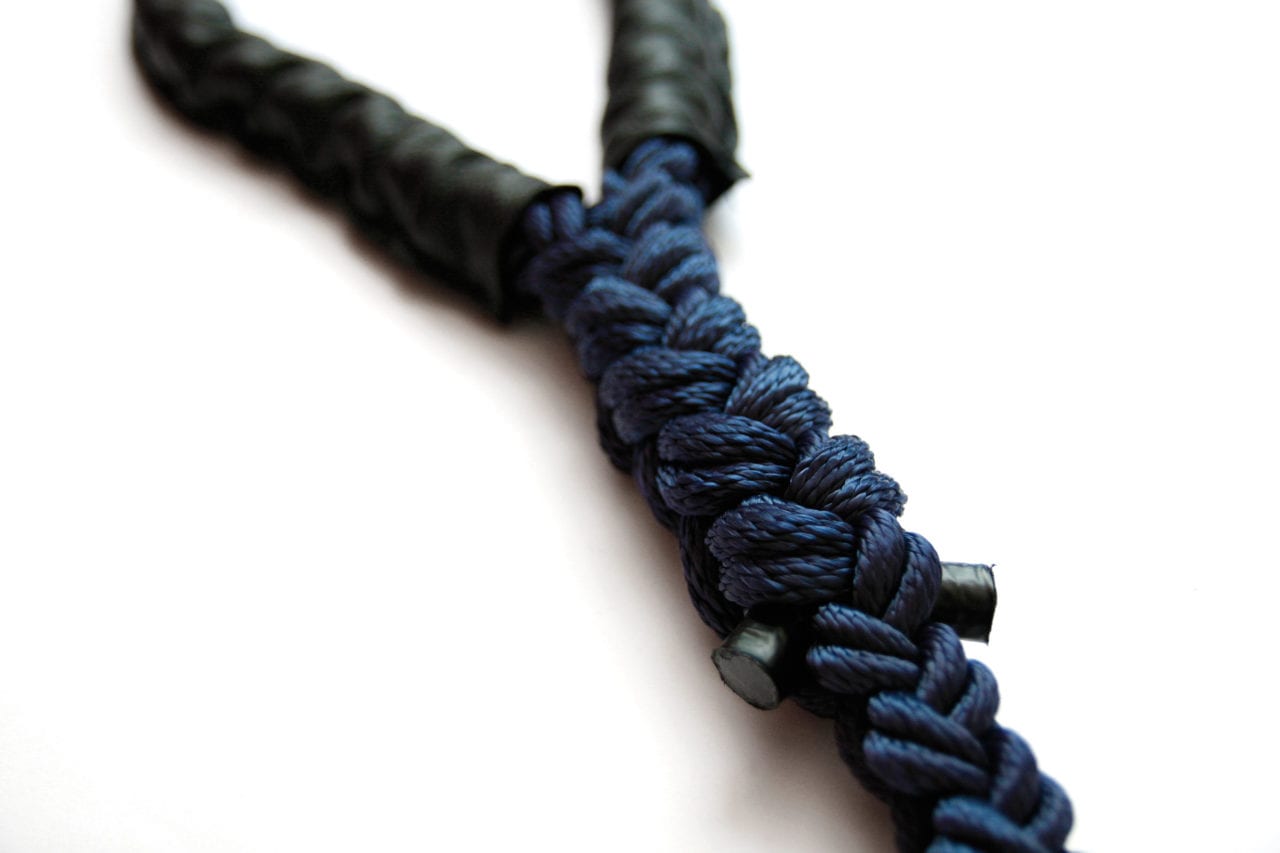

GeoSquare® Polyester

Square plaited mooring line. Almost indestructible and excellently suited as anchor warp.

  • Square-plaited construction made of HT Polyester in white, navy blue and black
  • Thermally stabilised for higher service life and improved handling
  • Polyester fibres combine best abrasion resistance with outstanding UV stability
  • Remains flexible throughout its usable life
  • Square-plaited ropes cannot kink
  • Highly suitable as mooring line, towing spring or anchor warp

Load elongation curve

GeoSquare Polyester kleuren - Carl Stahl

Beschikbare kleuren

GeoSquare Polyester - Load elongation curve - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3


4


5


6


8


10


12 10,90 2.700 3.000
14 14,90 3.700 4.111
16 19,40 4.700 5.222
18 24,60 6.300 7.000
20 30,30 8.000 8.889
22 36,70 9.700 10.778
24 43,70 11.000 12.222
26 51,20 12.200 13.556
28 59,40 14.000 15.556
30 68,20 15.900 17.667
32 77,60 18.000 20.000
36 98,20 22.600 25.111
40 121,00 27.500 30.556
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 2,5% of breaking load

Op rol, custom-made, serie werk of enkele stuks.

Neem
contact op

Bel ons op +31 (0)75 631 85 36 van maandag t/m vrijdag tussen 8:00 - 17:00u of stuur een e-mail naar benelux@carlstahl.com en wij nemen zo snel mogelijk contact met je op.

Wij adviseren jou graag!
