Gleistein

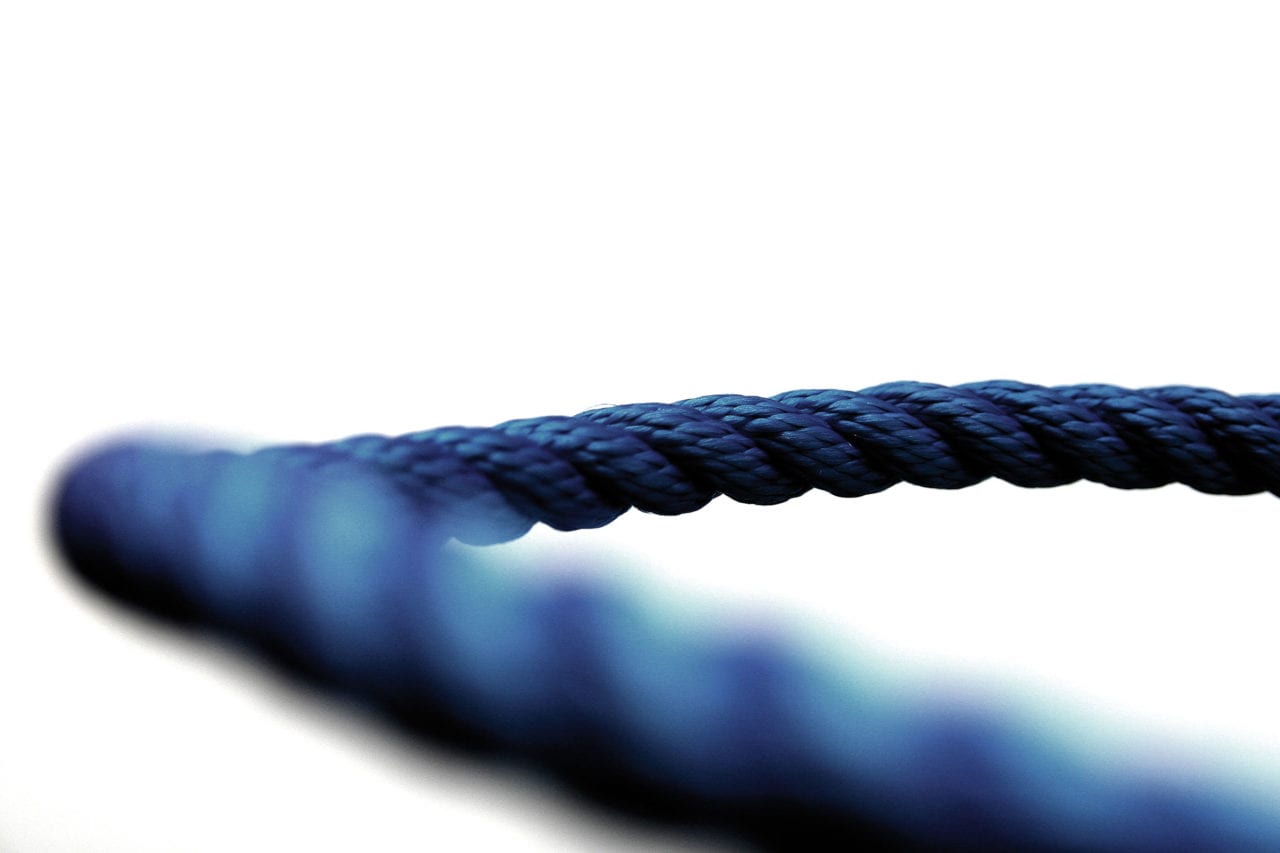

GeoTwist® GeoProp

Extremely economically priced buoyant mooring line with good all-round attributes.

  • 3-strand laid construction made of HT Polypropylene (our trade name GeoProp)
  • GeoProp boasts better UV stability in dark colours than in light colours
  • GeoProp lines retain their flexibility and do not stiffen in use
  • Due to its buoyancy GeoProp avoids coming near to the propeller and can be fished out of the water
  • Highly suited as a towing line
  • The light material is less suited for use as an anchor warp

Load elongation curve

Beschikbare kleuren

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3


4 0,72 275 306
5 1,13 482 536
6 1,63 670 744
8 2,89
1.160 1.289
10 4,52 1.750
1.944
12 6,51 2.470 2.744
14 8,86 3.290 3.656
16 11,60 4.210 4.678
18 14,60 5.250 5.833
20 18,10 6.400 7.111
22 21,90 7.640 8.489
24 26,00 8.960 9.956
26 30,60 10.400 11.556
28 35,40 11.900 13.222
30 40,70 13.600 15.111
32 46,30 15.400 17.111
36 58,60 19.100 21.222
40 72,30 23.300 25.889
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 4,0% of breaking load

Op rol, custom-made, serie werk of enkele stuks.
