Gleistein

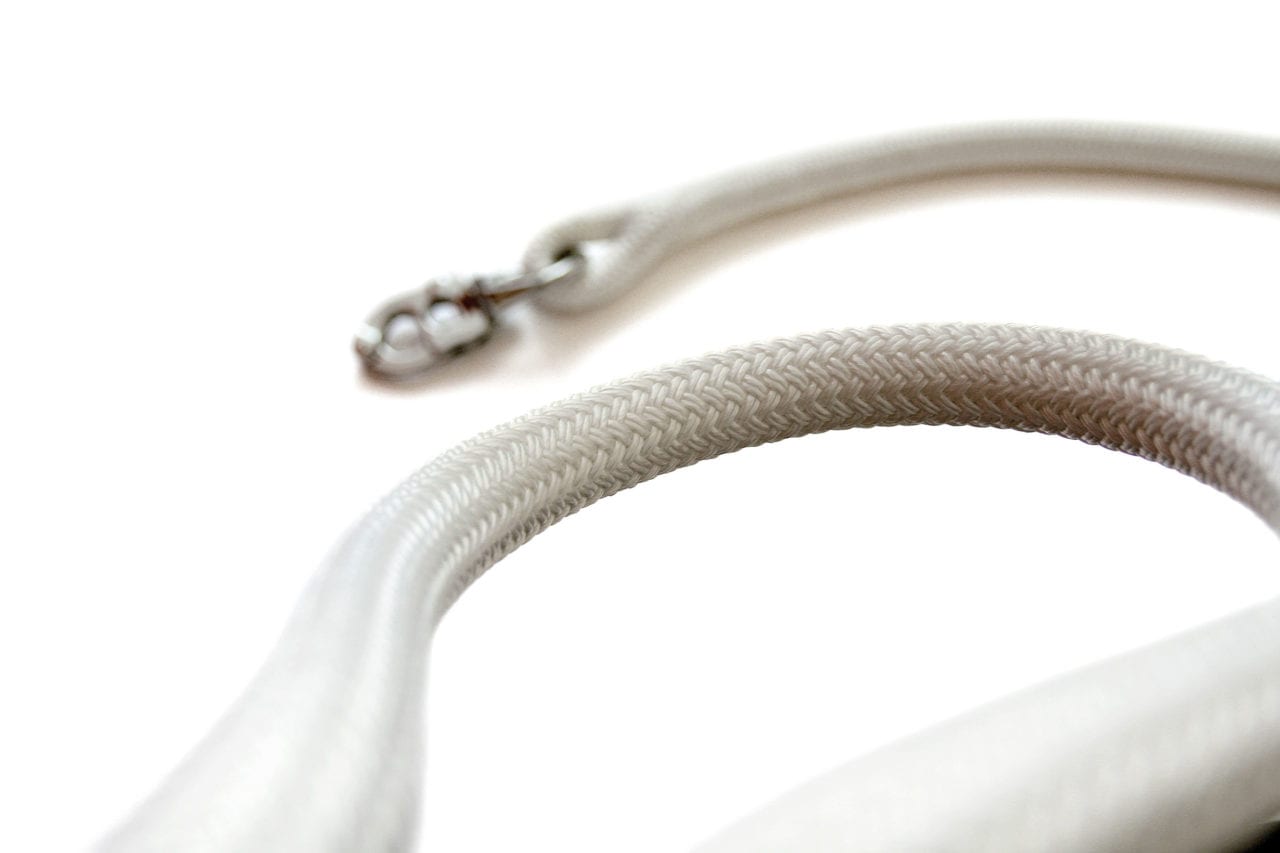

MegaTwin® Dyneema®

All-rounder at the highest level. Top break load, lowest elongation and maximum life expectancy.

  • Core 12-strand braid made of Dyneema SK78
  • Intermediate cover of polyester staple fibers
  • Cover 16/24/32-plait of polyester HT
  • Exceptional performance with stoppers, extremely abrasion resistant
  • Universal line: Ideal for halyards, sheets, guys and downhauls
  • Optionally available as creep-free MegaTwin Dyneema MAX: ideally suited for continuous static loads

Load elongation curve

MegaTwin Dyneema - Load elongation curve - Carl Stahl

Beschikbare kleuren

MegaTwin Dyneema kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2 0,27 180 200
3 0,72 450 500
4 1,00 700 778
5 1,70 1.200 1.333
6 2,60 1.650 1.833
8 4,00 2.800 3.111
10 7,00 4.900 5.444
12 9,90 7.000 7.778
14 13,00 8.500 9.444
16 17,50 12.000 13.333
18 23,70 15.000 16.667
20 28,00 20.000 22.222
22 31,00 23.000 25.556
24 35,00 24.500 27.222
26 41,00 28.500 31.667
28 44,00 34.000 37.778
30 53,00 40.000 44.444
32 61,00 45.500 50.556
36 79,00 60.000 66.667
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 0,4% of breaking load

Op rol, custom-made, serie werk of enkele stuks.
