Gleistein

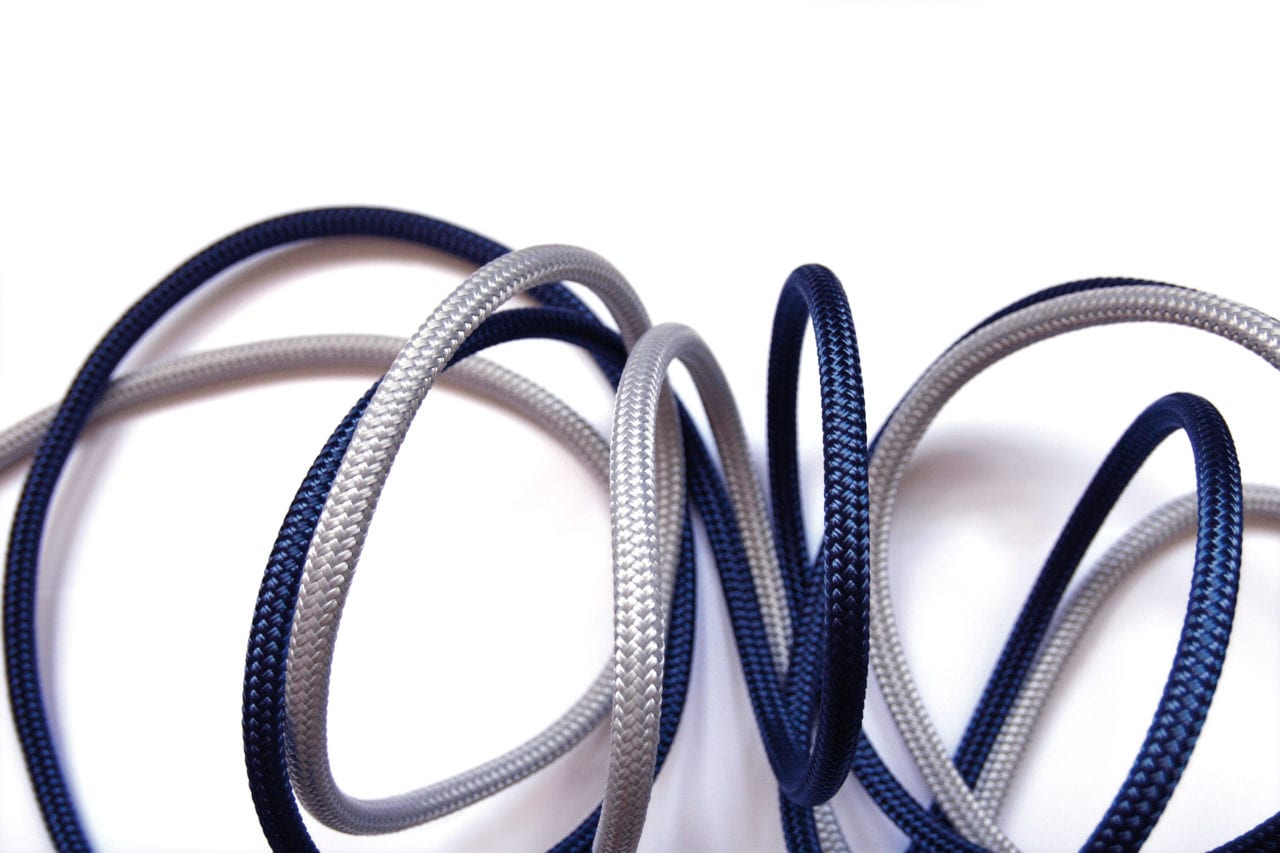

MegaTwin T4

Perfection to the very end: A flexible high-perfomance line without intermediate cover for easy splicing.

  • Core 12-strand braid of Dyneema SK78 blended with a special admixture for improved core-cover grip
  • Cover 16/24-plait of polyester HT
  • Does not kink and works especially well in instance where extreme break loads are required with small deflection radii
  • Permanently flexible and easy to splice
  • Ideal as a sheet

Load elongation curve

MegaTwin T4 - Load elongation curve - Carl Stahl

Beschikbare kleuren

MegaTwin T4 kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3


4 1,05 630 700
5 1,70 1.100 1.222
6 3,10 1.500 1.667
8 4,50 2.700 3.000
10 6,10 4.500 5.000
12 10,50 6.800 7.556
14 12,50 8.500 9.444
16 16,20 10.500 11.667
18 21,70 13.500 15.000
20 28,00 17.000 18.889
22 33,00 20.500 22.778
24 39,00 23.000 25.556
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 0,6% of breaking load

Op rol, custom-made, serie werk of enkele stuks.
