Gleistein

GeoTwist® Thempest

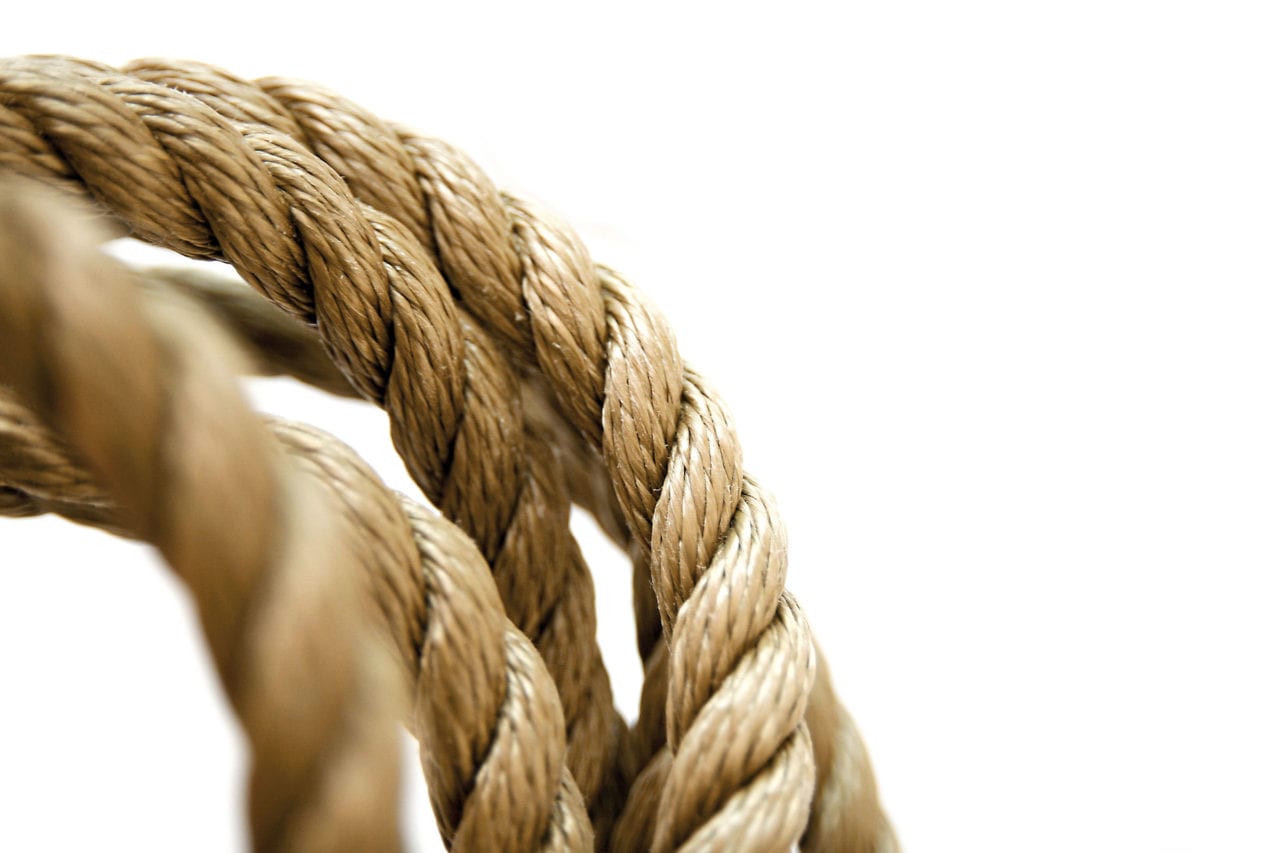

The ultimate rope for traditional vessels: A rugged laid construction in hemp or bronze colour.

  • 3-strand laid construction made of double yarns
  • Material composed of Polyester and specially developed polypropylene
  • The silky matt finish gives the outer appearance of natural fibre ropes
  • High break loads compared to other traditional looking synthetic fibre ropes
  • Very good abrasion resistance, UV stability and protection against weathering
  • Balanced load-elongation properties makes this universal line suitable for a wide variety of applications
  • All running rigging on board of the trainee sailing vessel "Gorch Fock" of the German navy comprises from GeoTwist Thempest®

Load elongation curve

GeoTwist Thempest - Load elongation curve - Carl Stahl

Beschikbare kleuren

GeoTwist Thempest kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3


4


5


6 2,40 650 722
8 3,70 1.100 1.222
10 5,30 1.650
1.833
12 8,40 2.400 2.667
14 10,60 3.100 3.444
16 14,10 4.100 4.556
18 18,30 5.100 5.667
20 22,60 6.250 6.944
22 27,30 7.600 8.444
24 32,50 8.700 9.667
26 38,20 10.250 11.389
28 44,30 12.000 13.333
30 50,80 13.500 15.000
32 57,80 15.500 17.222
36 73,20 19.500 21.667
40 90,40 24.000 26.667
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 3,2% of breaking load

Op rol, custom-made, serie werk of enkele stuks.

Neem
contact op

Bel ons op +31 (0)75 631 85 36 van maandag t/m vrijdag tussen 8:00 - 17:00u of stuur een e-mail naar benelux@carlstahl.com en wij nemen zo snel mogelijk contact met je op.

Wij adviseren jou graag!
