Gleistein

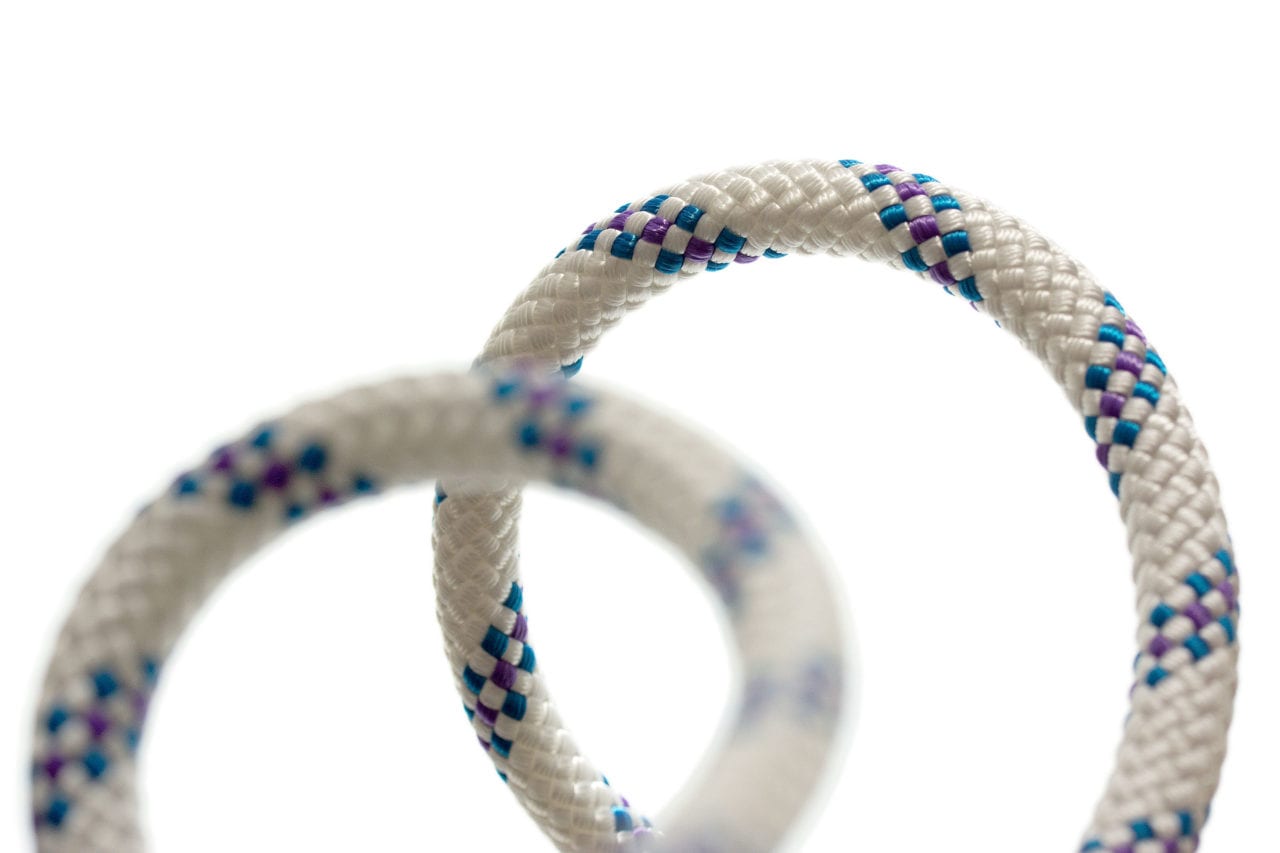

Harkon

Extemely abrasion resistant and economical sheet, optimized for long-term use on winches.

  • Core 12-strand braid of polyester HT, thermally stabilised
  • Cover of the same material as an especially tight, very abrasion resistant 16-strand braid in a 1 over 1 construction
  • Double braid
  • Especially grippy and ease to handle
  • Very long service life
  • Exceptional value for money
  • Optimised as a sheet in winch systems

Load elongation curve

Beschikbare kleuren

Harkon kleuren - Carl Stahl

Technische data

Ø (mm) kg / 100 m BI. real [daN]* BI. linear [daN]**
2


3


4


5


6 2,40 800 889
8 4,80 1.600 1.778
10 7,70 2.500 2.778
12 10,40 3.500 3.889
14 14,00 4.500 5.000
16 18,50 5.000 5.556
* Spliced break load | Elongation at 10% of breaking load
** Linear break load according to DIN EN ISO 2307 | Elongation at 2,7% of breaking load

Op rol, custom-made, serie werk of enkele stuks.

Neem
contact op

Bel ons op +31 (0)75 631 85 36 van maandag t/m vrijdag tussen 8:00 - 17:00u of stuur een e-mail naar benelux@carlstahl.com en wij nemen zo snel mogelijk contact met je op.

Wij adviseren jou graag!
